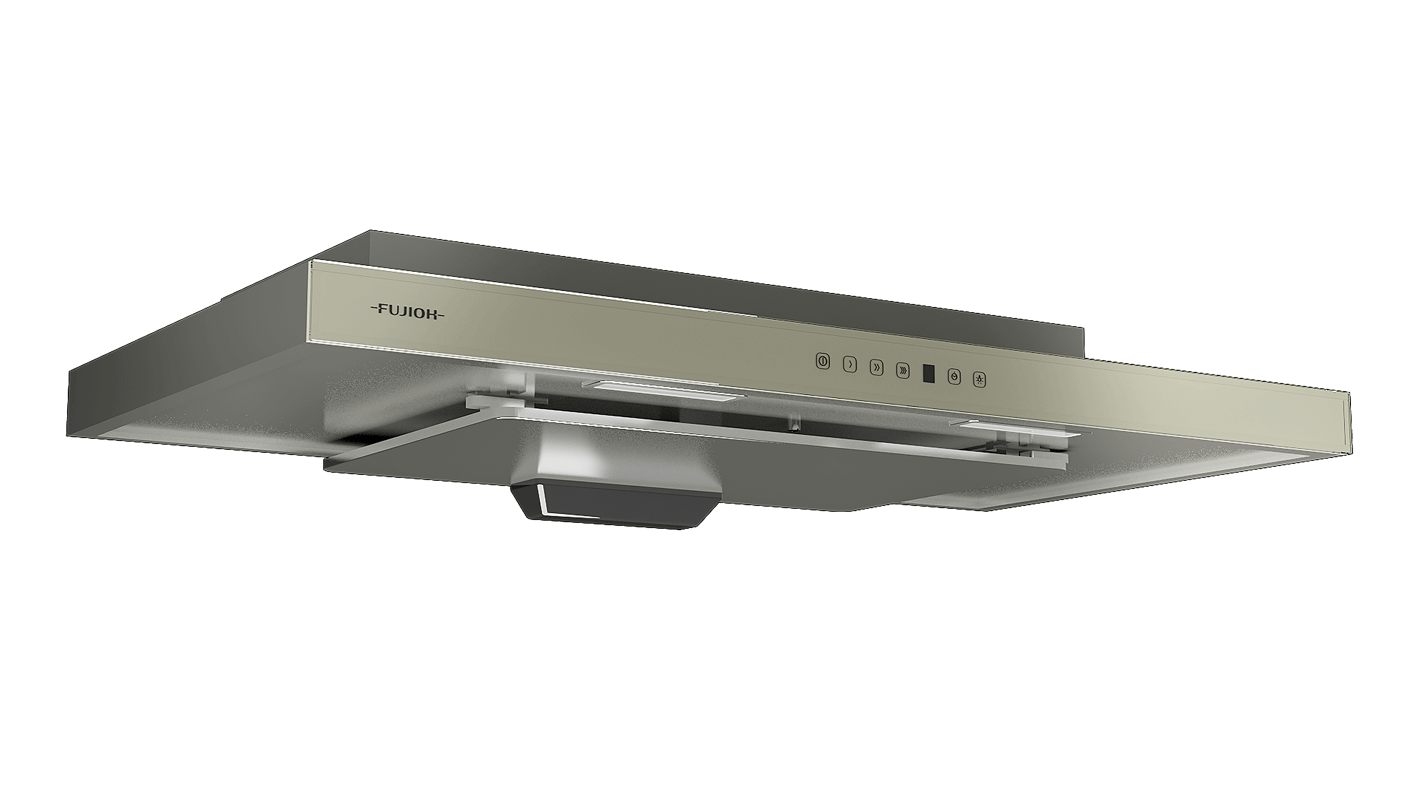

FR-MS1990
900mm Width
Type
Dimension [mm]
(W x Dx H)
Weight [kg]
Air flow [m³/h](L/M/H)
Sound [dB] (L/M/H)
Power consumption [W]
(L/M/H)
*Lighting LED light 1.5x2
Oil capturing ratio [%]
Ventilating (V) FR-MS1990V
Recycling (R) FR-MS1990R
900 x 460 x 120(50+70)
(V) 10.3
(R) 10.6
(V) 230/320/400
(R) 135/175/245
(V) 45/52/57
(R) 37/44/53
(V) 120/156/218
(R) 100/105/141
(V) 86%
(R) 89%
Upgrade design
*Suitable for replacing some slide-out or integrated models
01/ Ultra-thin design. Glass panel
02/ Easy to clean
Aqua Slit Filter (Made in Japan)
• Hydrophilic coating
• Simple & Easy to clean with the use
of water
03/ With special rectifier board and oil cup, the oil absorption rate is as high as 86%
04/ Environmental LED
05/ Delayed shutdown function
• 3/6/9 minutes delay shutdown function
06/ Anti-rust material
• External parts are made of high-quality stainless steel
07/ Safety design
• 5 hours automatic shutdown
Oil
water
Hydrophilic coating
Stainless steel surface
Rectifier Panel
Optional accessories
FIXING BRACKET
